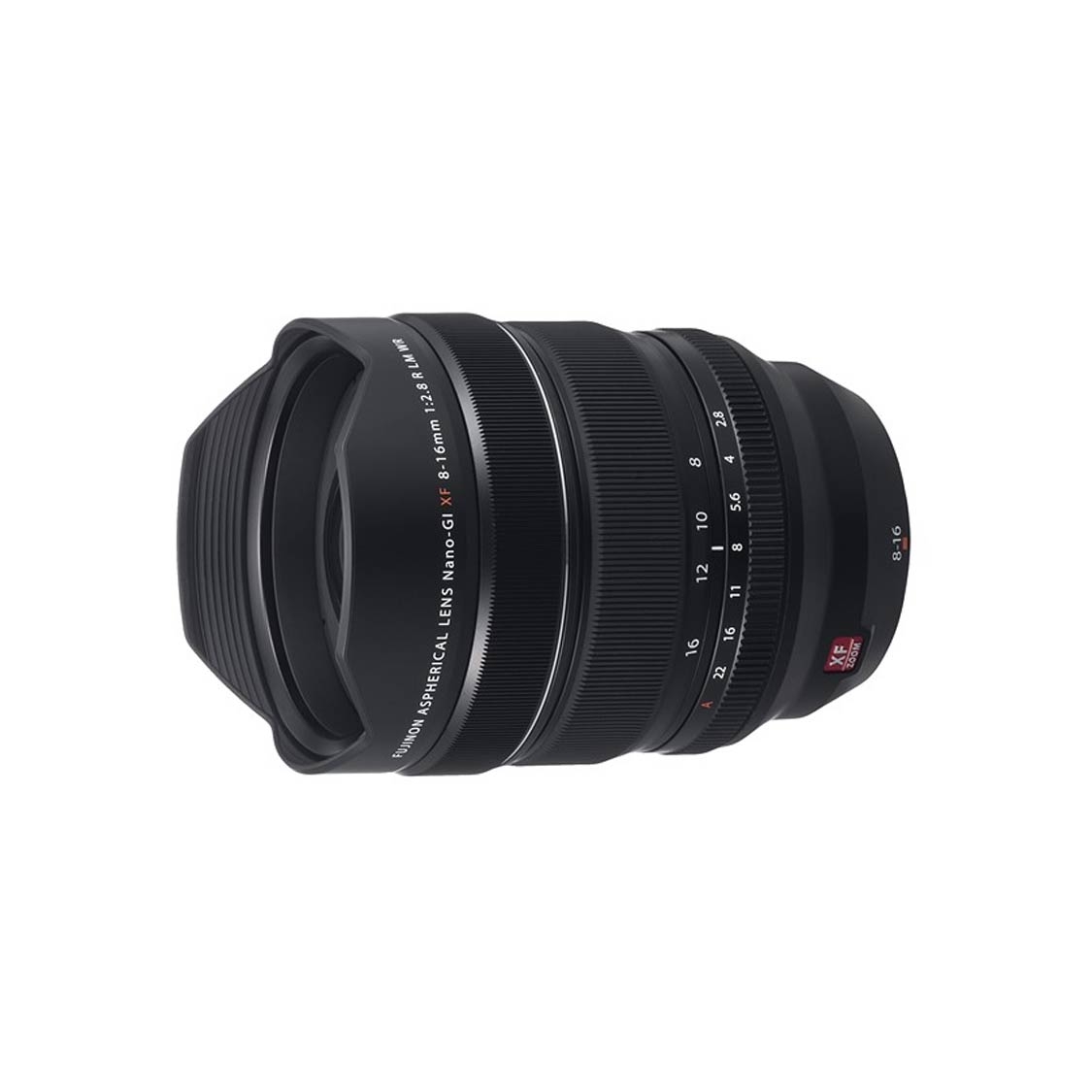

The XF8-16mmF2.8 R LM WR is a fast ultra-wide angle zoom lens that has a constant maximum aperture of F2.8 and is equivalent to 12-24mm in the 35mm format. It complements the other constant F2.8 zoom lenses (XF16-55mmF2.8 R LM WR and XF50-140mmF2.8 R LM OIS WR) to create a premium trio of lenses that covers the focal lengths equivalent from 12mm all the way to 213mm in the 35mm format. The lens’ outstanding edge-to-edge image-resolving performance and F2.8 maximum aperture makes this product a perfect choice for landscape and architecture photography with an emphasized sense of perspective, interior photography at restaurants and hotels, as well as nightscape and astrophotography.
Ultra-wide angle zoom with a constant maximum aperture of F2.8
In order to provide an ultra-wide angle zoom of 8-16mm (equivalent to 12-24mm in 35mm format) at a constant maximum aperture of F2.8, this lens uses an impressive 20 elements in 13 groups. This includes four aspherical lens elements to control distortion and spherical aberration, and six ED lens elements including three super ED elements to control lateral chromatic aberration. This design results in advanced image-resolving performance across the zoom range while maintaining a constant maximum aperture of F2.8.
Field curvature correction mechanism
In order to correct field curvature, typically found with ultra-wide angle lenses, this lens features a correction element which adjusts according to the position of the zoom in order to achieve edge-to-edge sharpness.
Double Nano-GI Coating
The rear surface of the two front lens elements is treated with Nano-GI coating to eliminate ghosting and flare, caused by oblique light, creating clear images.
Silent and fast autofocus
The lens uses linear motors for autofocus to achieve quiet and ultra-fast AF.
Advanced construction that withstands various shooting conditions
The barrel is sealed at 11 places to make the lens resistant to dust, moisture, and low temperatures down to -10 degrees Celsius. The front lens element is coated with fluorine to repel water and dirt, adding extra durability so that the lens can be used outdoors with peace of mind.
- Lens configuration: 20 elements 13 groups (includes 4 aspherical, 3 ED, 3 super ED elements)
- Focal length: f=8-16mm (12 - 24mm)
- Angle of view: 121° - 83.2°
- Max. aperture: F2.8
- Min. aperture: F22
- Aperture control
- Number of blades: 9 (rounded diaphragm opening）
- Step size: 1/3EV (19 steps)
- Focus range: 25cm - ∞
- Max. magnification: 0.1x
- External dimensions (Diameter x Length, approx., distance from camera lens mount flange): Φ88mm x 121.5mm
- Weight (approx., excluding caps): 805g
- Lens cap FLCP-8-16
- Lens rear cap RLCP-001
- Wrapping cloth
