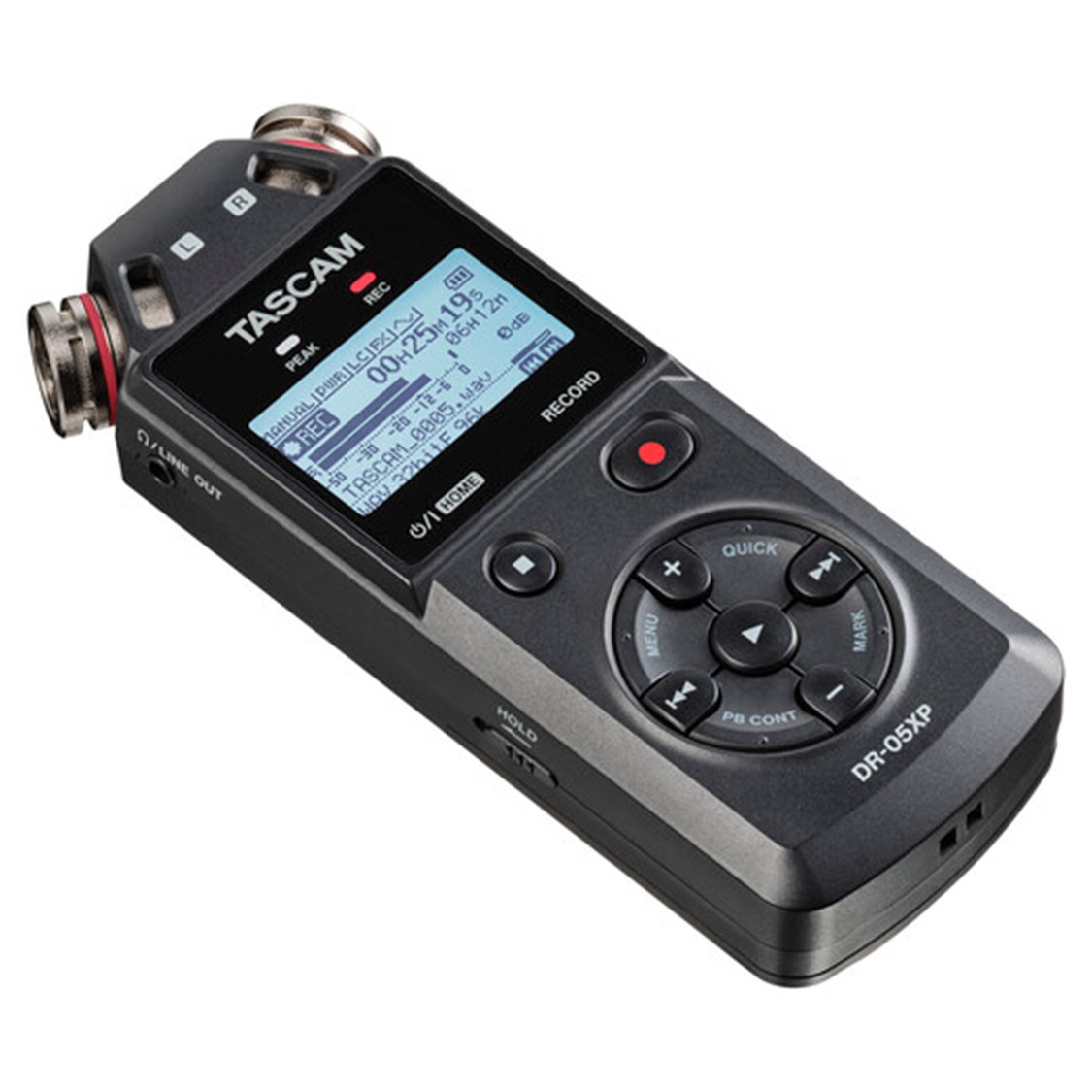

Tascam DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder

The TASCAM DR-05XP handheld recorder is built for speech, sound effects, and live music recordings, capturing two audio tracks in high-resolution 32-bit float without the need for external mics. Its built-in omnidirectional condenser microphones are arranged in an A-B configuration, delivering wide, immersive stereo sound. Whether held in the hand, mounted on a stand, or attached to a camera, the DR-05XP adapts easily to a range of uses, from music sampling and concerts to interviews and podcasts. It offers flexible power options including batteries, USB bus power, or an AC adapter, making it suitable for portable use, extended video shoots, and desktop production. A 3.5mm mini-jack input accepts mic- or line-level signals, even providing plug-in power for lavalier microphones or other gear when needed. With features like peak reduction, a limiter, and automatic level control, the DR-05XP helps deliver clean audio, whether using the onboard or external mics.

Its 32-bit float recording mode ensures audio remains clear and undistorted, eliminating the need to set input levels manually. Simple and user-friendly, all functions can be accessed one-handed, and the backlit LCD makes operation easy in any lighting. The onboard mics are designed to handle sources as loud as 125 dB, making them ideal for capturing concerts and other high-volume environments. Because they’re omnidirectional and spaced in an A-B layout, they gather sound from a broad area for natural stereo recordings. For close-mic situations, such as interviews or presentations, the 3.5mm input supports lav mics and includes a setting to enable plug-in power. If you're connecting a mixer or wireless receiver, the same input handles line-level signals. When plugged in, it overrides the built-in microphones automatically for a seamless transition.

To keep the unit compact and travel-friendly, audio is recorded to separately available microSD cards—compatible with microSD, microSDHC, and microSDXC formats up to 512GB. This allows for long recording times, even at higher resolutions. With a 512GB card, stereo recording can extend beyond 780 hours at standard CD-quality resolution. If you want to send sound to your camera and the DR-05XP simultaneously, connect the output mini-jack to your camera’s input and fine-tune levels using the dedicated control buttons. You can also plug headphones into the same jack for accurate monitoring, or use the built-in mono speaker for quick playback checks.

The USB-C port provides connection to Mac, Windows, or iOS systems for live audio input and output. The DR-05XP can act as a USB microphone or a 2-in/2-out audio interface, supporting real-time monitoring and integration with software. It also functions as a card reader for quick file transfers. Two AA batteries offer up to 17.5 hours of continuous stereo recording at 16-bit / 44.1 kHz. For longer sessions, the unit can also be powered via USB or an optional AC adapter.

Compact and lightweight, the DR-05XP fits comfortably in your hand or pocket. A hold switch on the side panel prevents accidental button presses, and a threaded mount on the bottom lets you attach the device to a mic stand or tripod. To improve the quality of your recordings, the DR-05XP features automatic level control, a limiter to prevent distortion, and a peak reduction function that adjusts gain during performance or rehearsal. You can activate a low-cut filter at 40, 80, or 120 Hz to reduce wind and rumble, and even add reverb presets like hall, room, studio, or plate to enhance your audio. After recording, the treble, mids, and bass can be adjusted to shape playback tone.

Recording features are designed to streamline your workflow. The prerecord setting allows you to capture up to two seconds of audio before hitting the record button. An auto-record mode can trigger recording at preset decibel thresholds, while a self-timer function can delay the start of recording by five or ten seconds. Overdubbing lets you layer a new performance over an existing one, combining both into a new file while keeping the original intact.

To help sync audio with video, the DR-05XP includes an internal tone generator. When linked to a camera, an adjustable auto-tone plays simultaneously on both devices, serving as a visual and audible reference during editing. The device also includes a graphic LCD with a resolution of 128 x 64 pixels and offers menu support in ten languages. Additional features include dictation mode for voice recordings, variable playback speed, automatic file splitting at maximum size, and tools such as a mark function, playlist management, and a built-in chromatic tuner.
