Promaster V-Mount Battery Charger Kit 190WH with D-Tap

SPEC ORD 61285 029144612856

$299.99

Special Order Item

Please contact us for estimated time to delivery, cancellations or returns subject to 20% restocking fee.
Quantity:
Shipping Options Available*
Standard | In Store Pick Up | 24-hour

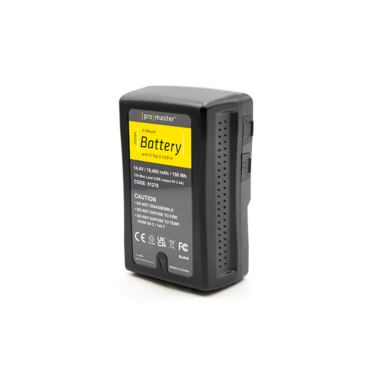

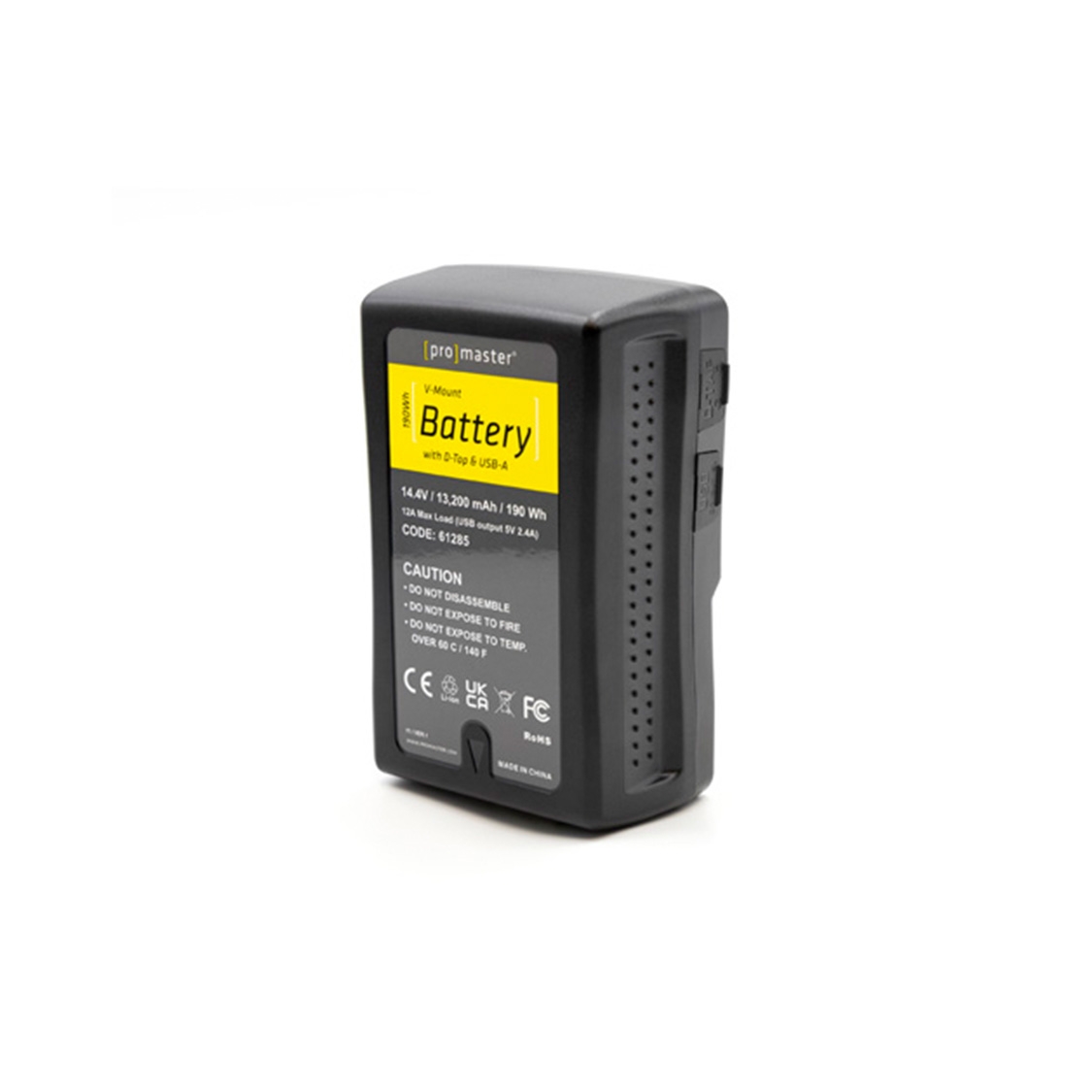

A 190 Wh lithium-ion battery & charger kit that is compatible with V-Mount & D-Tap devices.

The ProMaster 61285 V-Mount Battery Kit is a high capacity (14.4V / 13,200 mAh / 190 Wh) li-ion battery with D-Tap and USB-A ports. It supports a continuous draw up to 12A at a nominal 14.4 V. This kit includes a D-Tap charger for convenience and value.

The battery sports an industry standard D-Tap port which can be used for charging the battery, as well as for powering other devices using a compatible D-Tap cable. In addition to the D-Tap port, this battery has a USB-A (5V 2.4A) output port for charging or powering compatible devices.

An on-board 4-LED power gauge displays the approximate, remaining battery capacity. It is easily activated with the push of a button.

Over-charge, over-discharge, over-current, and over-temperature protection circuitry is built-into this battery for safety.

Charging this battery using the included D-Tap charger from depleted to 100% takes about 8 1/2 hours.

  • Nominal Voltage: 14.4 V
  • Capacity: 13,200 mAh / 190 Wh
  • Maximum Load: 12 A continuous draw (via main contacts or D-Tap)
  • Cut-off Discharge Voltage: 10.5 V
  • Charging Voltage: 16.8 V
  • Charging Current: 2.64 A standard charging / 4.0 A quick charging
  • Maximum Charging Current: 6 A
  • USB-A Port Output: 5 V / 2.4 A
  • USB Cut-off Discharge Current Protection: 2.5 - 3.2 A
  • D-Tap Maximum Discharge Current: 14.9 A (16.8 V) - 23.8 A (10.5 V)
  • D-Tap Charging Voltage: 16.8 V
  • D-Tap Maximum Charging Current: 6 A
  • Dimensions: 5 7/8" x 3 3/4" x 2 1/4" | 150 mm x 95 mm x 57 mm
  • Weight: 1,063 g / 2 lbs 5 1/2 oz
  • Charger Specifications:
  • Input: 100 - 240 V AC 50/60 Hz
  • Output charging voltage: 16.8 V DC
  • Output charging current: 2.0 A
